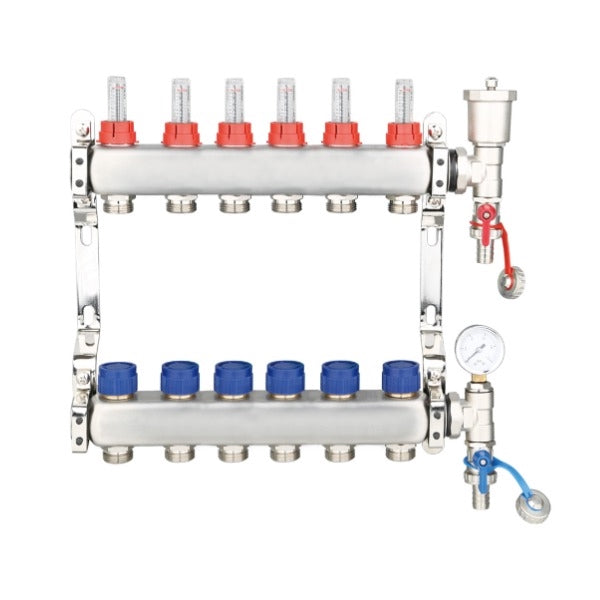

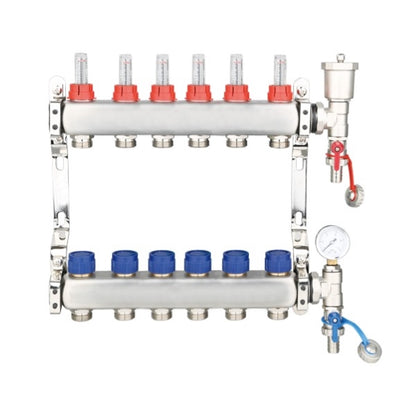

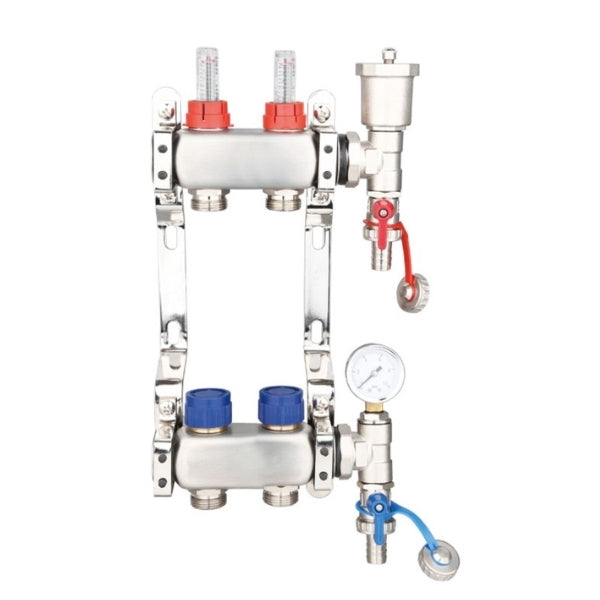

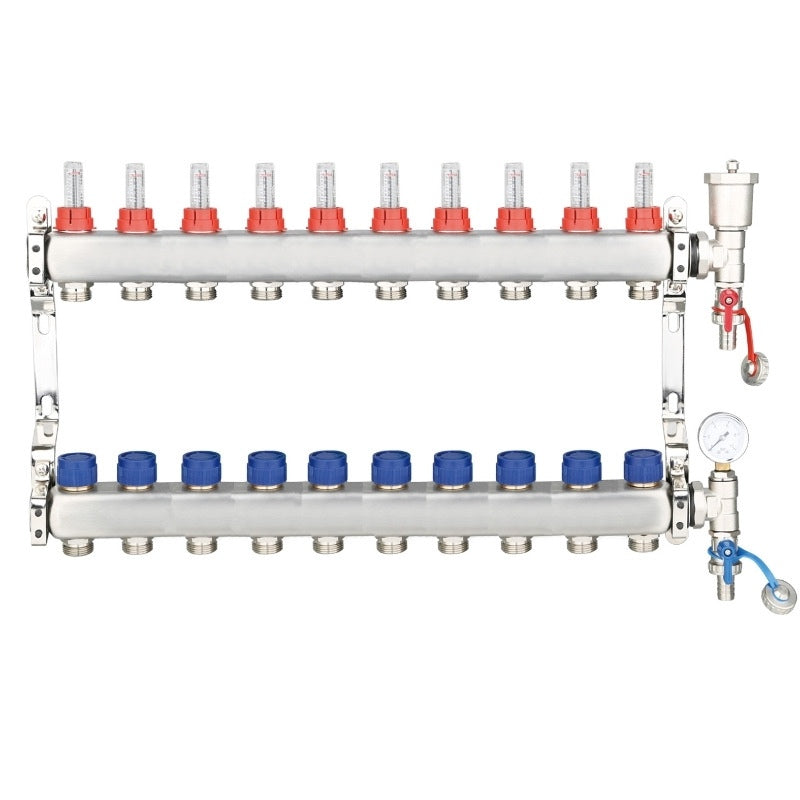

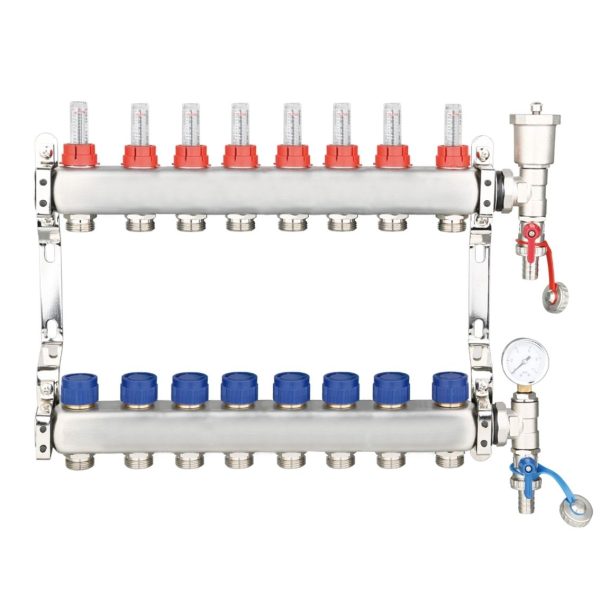

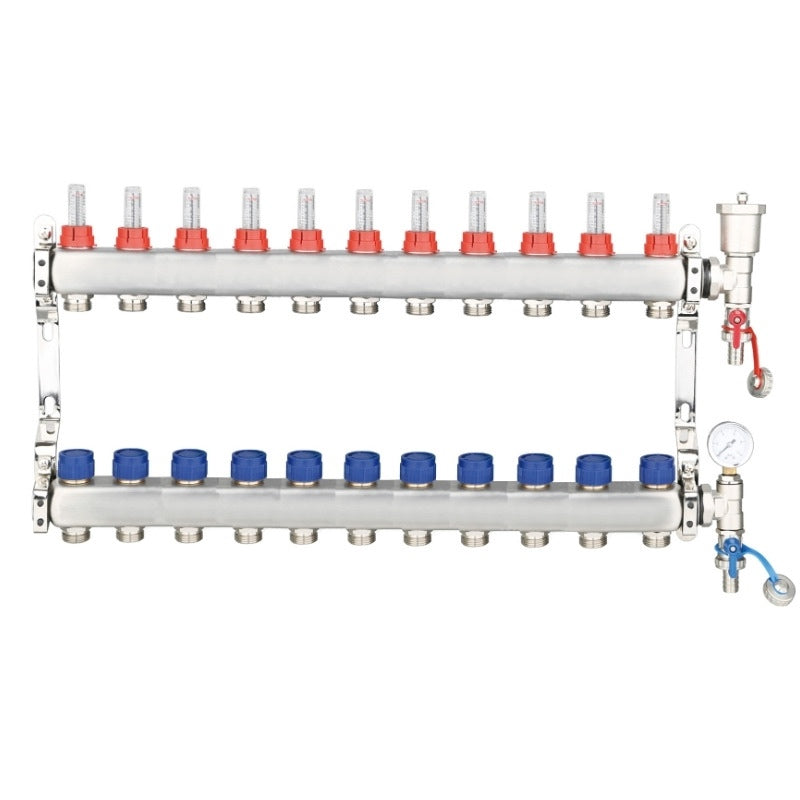

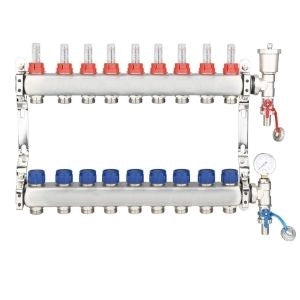

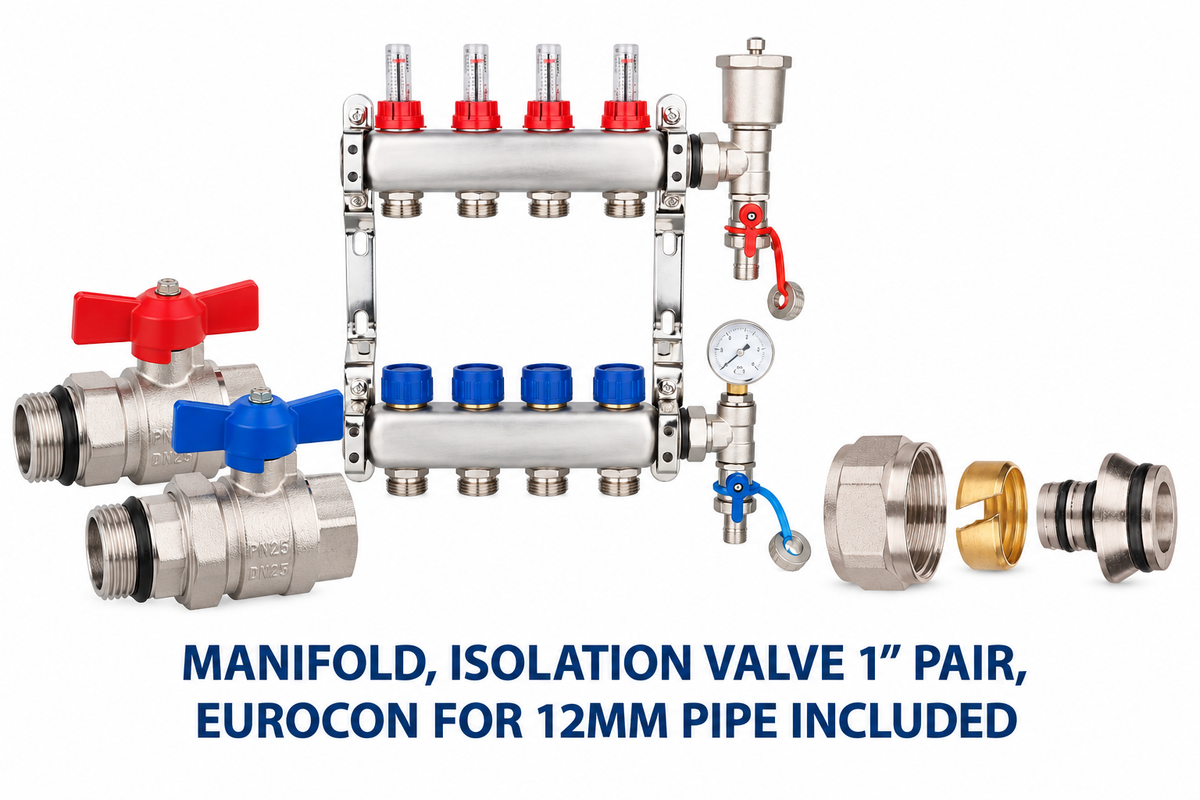

EDGE STAINLESS STEEL UFH MANIFOLD COMPLETE SET – INCLUDING BALL ISOLATION VALVE & EUROCONE CONNECTOR FOR 12MM UFH PIPE
PRODUCT DESCRIPTION

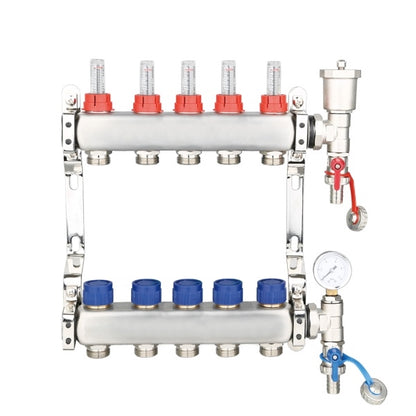

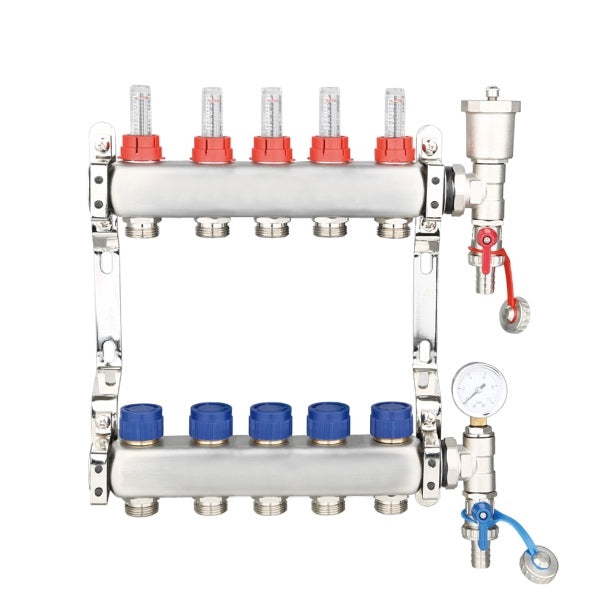

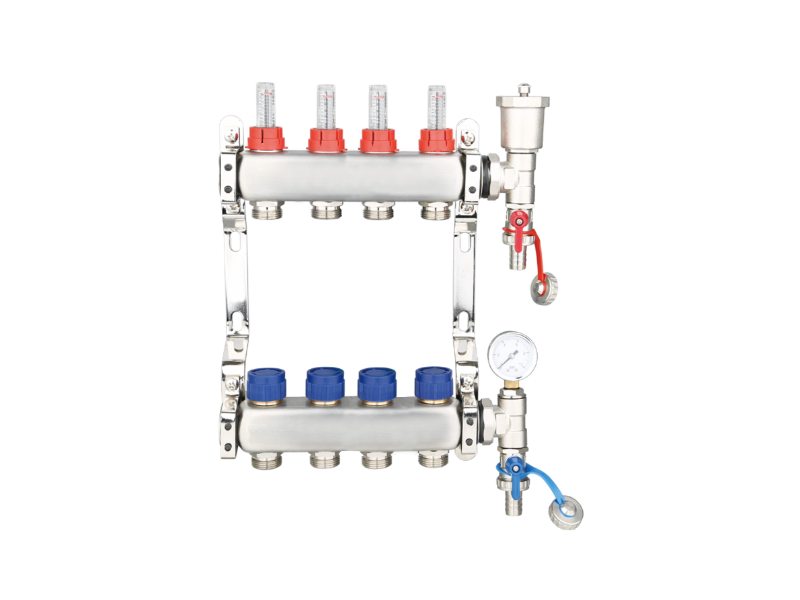

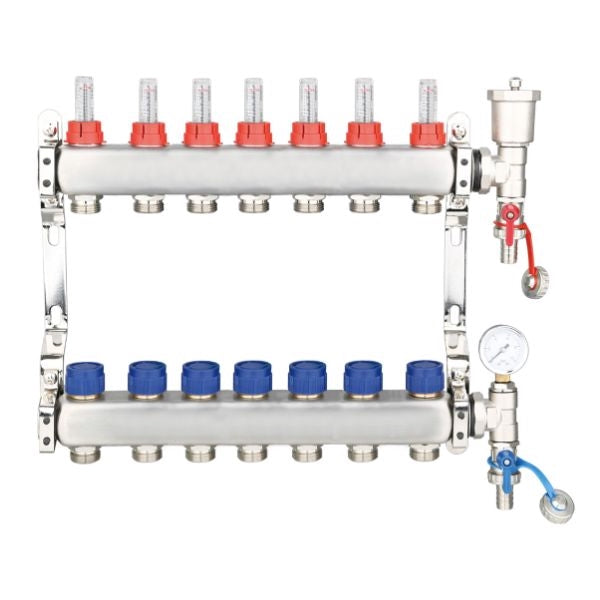

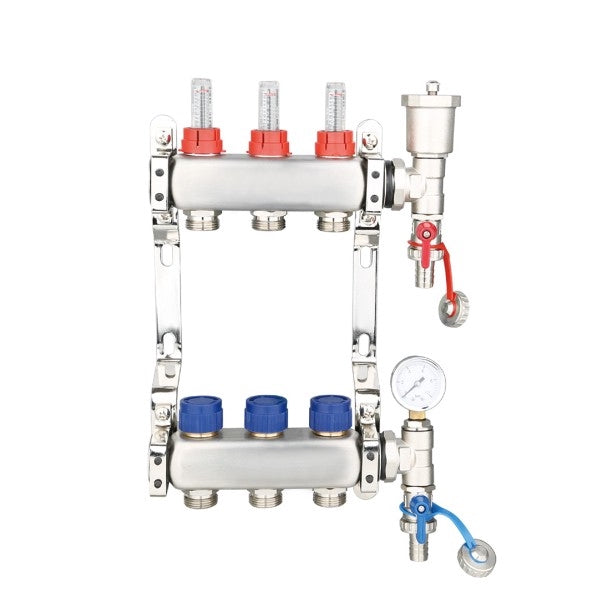

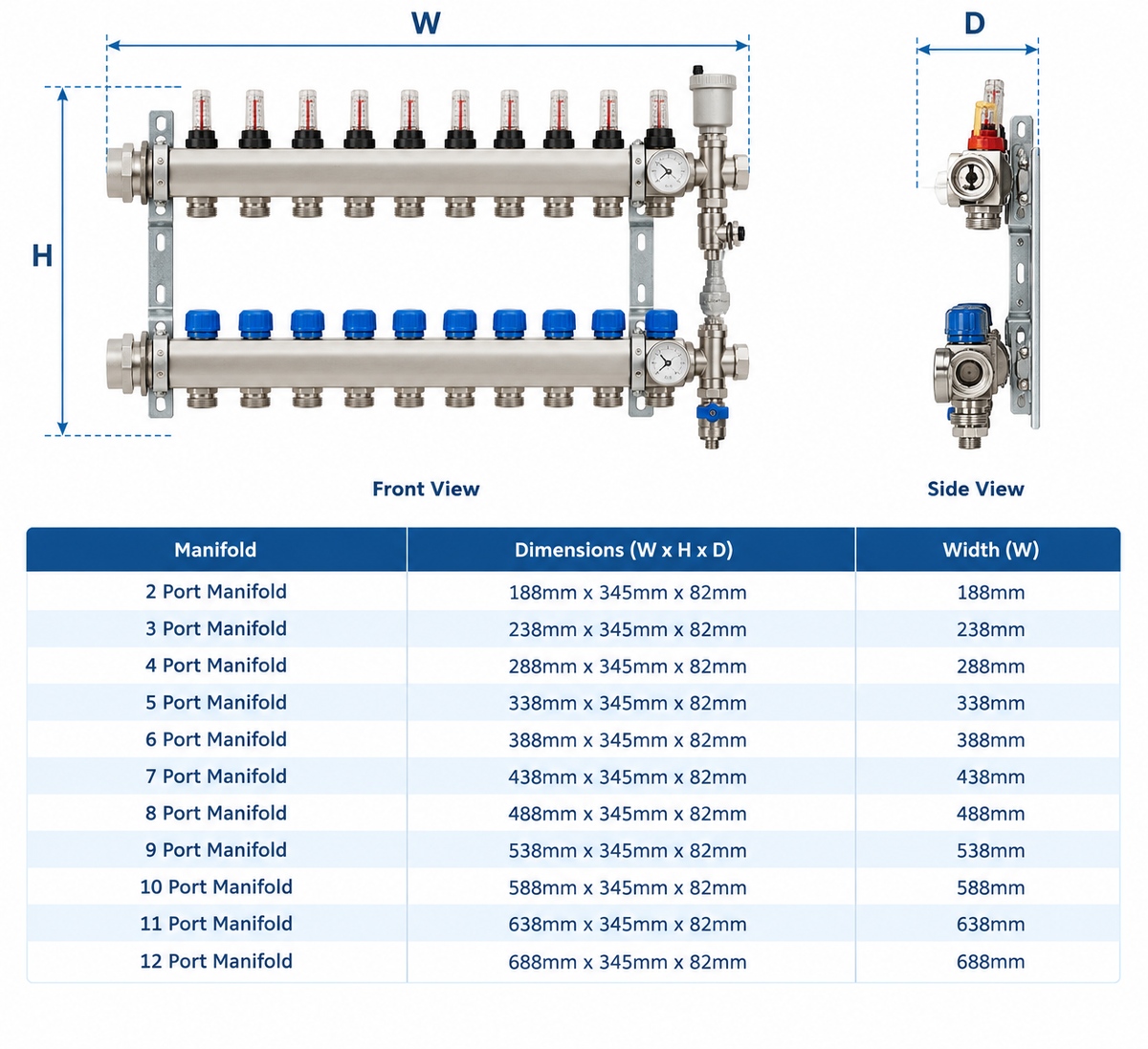

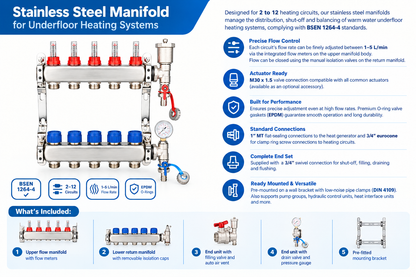

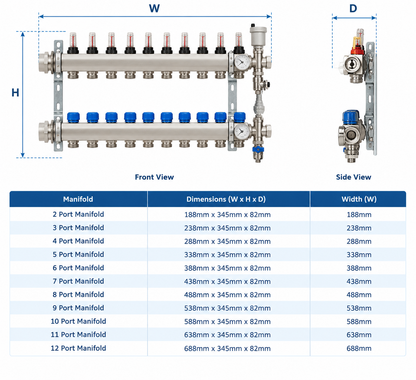

Designed to accommodate between 2 and 12 heating circuits, the EDGE Range Stainless Steel Manifold provides efficient water distribution, isolation, and flow balancing for underfloor heating (UFH) systems, in compliance with BS EN 1264-4.
Each circuit’s flow rate can be accurately regulated from 1 to 5 litres per minute using the integrated flow meters located on the upper flow manifold. Individual circuits can also be isolated using the manual shut-off valves fitted to the lower return manifold.
The manifold incorporates an M30 × 1.5 valve connection, making it compatible with standard actuators, available as an optional accessory. It delivers precise flow regulation, including at higher flow rates, while high-quality EPDM O-ring valve seals ensure smooth operation and long-lasting performance.

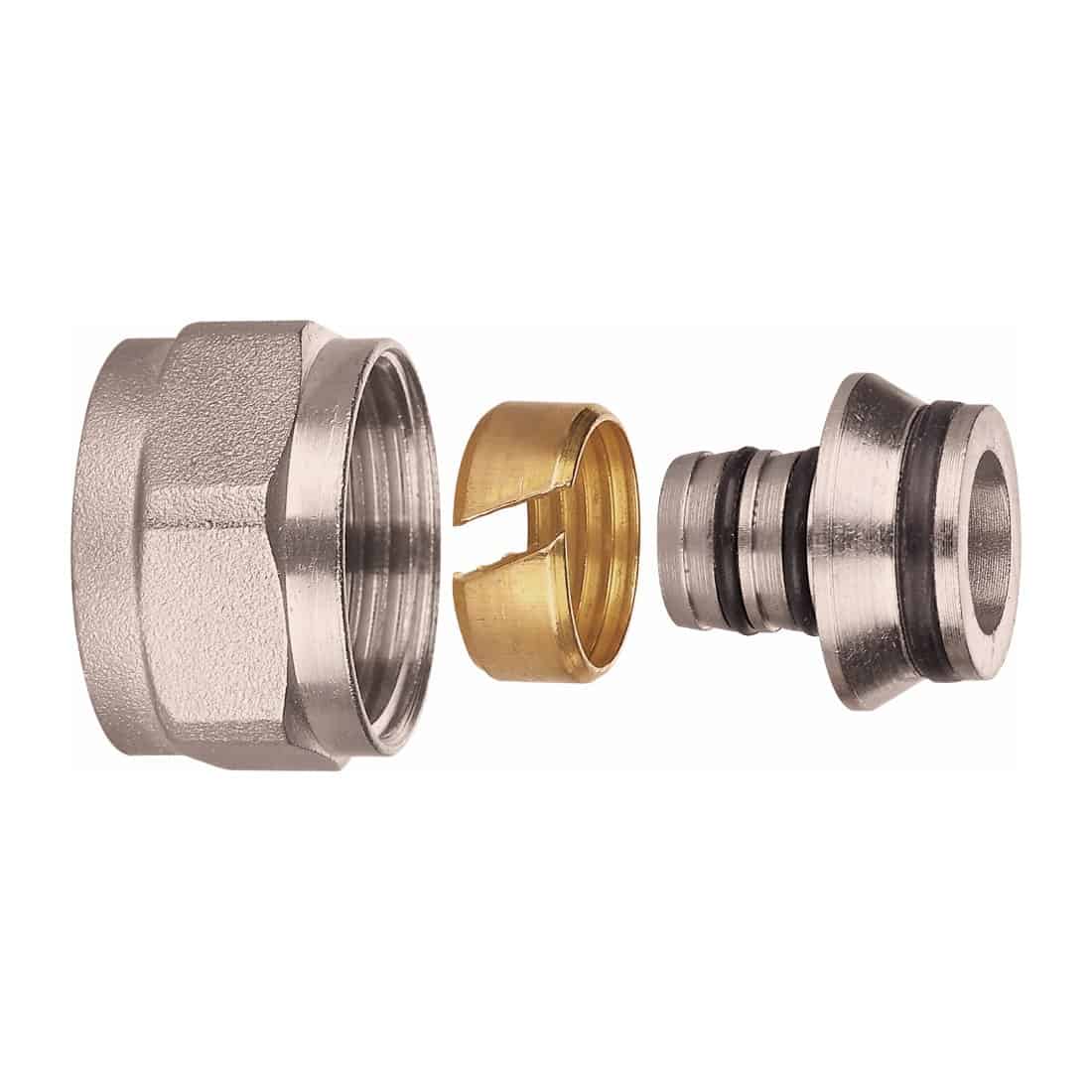

A 1" male-threaded flat-sealing connection is provided for connection to the heat source, while the heating circuits connect via 3/4" Eurocone fittings suitable for clamp-ring screw connections. The supplied end assemblies also feature a 3/4" swivel connection, allowing convenient system isolation, filling, draining, and flushing.
Supplied pre-assembled on a wall-mounted bracket and fitted with low-noise pipe clamps in accordance with DIN 4109, the manifold is designed for straightforward installation and reduced noise transmission. It is also compatible with a variety of complementary heating components, including pump groups, manifold hydraulic control units, heat interface units, and other associated systems.

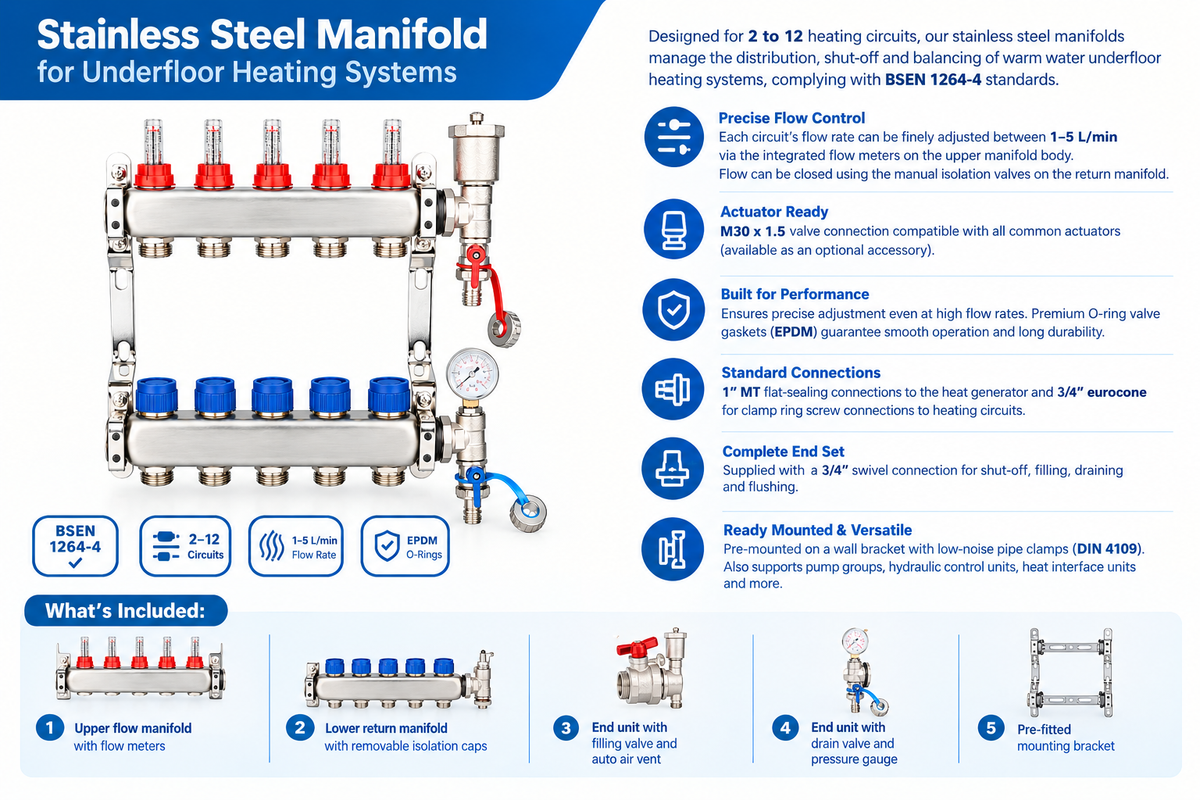

WHAT'S INCLUDED
Automatic air vent
Drain valve and pressure gauge
End assembly with drain valve and pressure gauge
End assembly with filling valve and automatic air vent
Eurocone connectors for 16mm UFH pipe

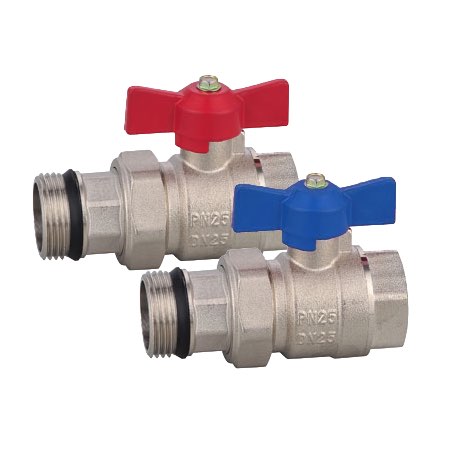

Isolation valve, 1"
Lower return manifold fitted with removable isolation caps
Pre-fitted wall-mounting bracket
Upper flow manifold complete with integrated flow meters
