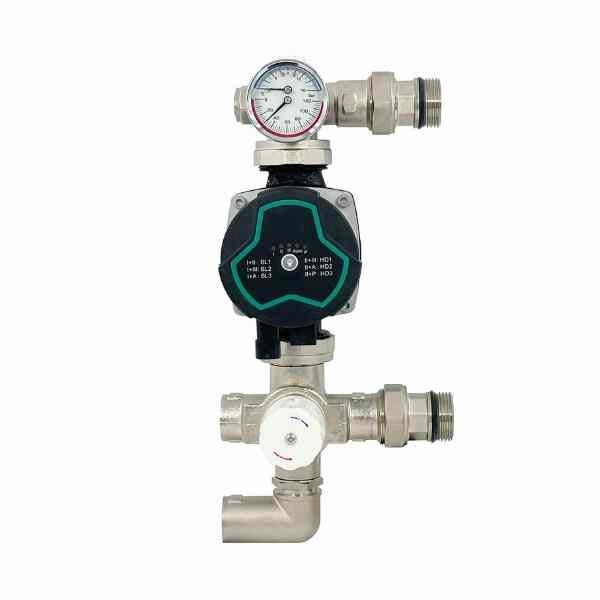

UNDERFLOOR HEATING MIXING VALVE WITH BASTION 7.5M HEAD CIRCULATION PUMP

This underfloor heating mixing valve assembly combines a compact thermostatic temperature control valve with an energy-efficient, A-rated Bastion circulation pump featuring a 7.5m maximum head. Designed for water-based underfloor heating systems, it provides accurate flow temperature regulation and reliable water circulation.

Supplied as a fully assembled left-hand unit, it features G1 male swivel connections with flat seals, allowing direct connection to the manifold without mounting brackets, drilling, or additional fixing hardware.

The thermostatic mixing valve offers an adjustable flow temperature range of 35–65°C, with a factory preset of 45°C. Temperature adjustments are made using the control knob: turn clockwise to increase the temperature or anticlockwise to decrease it. This helps maintain consistent, comfortable floor heating while reducing the risk of excessive temperatures.

The upgraded Bastion 7.5m head pump provides enhanced circulation capacity for a wider range of system configurations while maintaining low electricity consumption.

BENEFITS AND INSTALLATION GUIDANCE

• Comfortable and Controlled Heating: Regulating the water temperature supplied to the floor helps maintain even heat distribution and reduces the risk of overheating. The factory setting of 45°C provides a convenient starting point for many underfloor heating applications, although the final setting should comply with system design requirements and flooring manufacturer temperature limits.

• Improved Circulation Performance: The pump's 7.5m head capability makes it suitable for installations with higher hydraulic resistance or larger heating zones, helping accommodate more demanding underfloor heating layouts without necessarily requiring an additional pump.

• Lower Energy Consumption: The A-rated circulation pump and accurate temperature blending help minimise energy use. The assembly is also suitable for low-temperature heating systems incorporating renewable energy sources.

• Quick and Straightforward Installation: The assembly connects directly to the manifold, helping reduce installation time. It is ideal for retrofit projects, single-zone upgrades, small to medium-sized rooms, home extensions, and systems requiring additional circulation capacity.

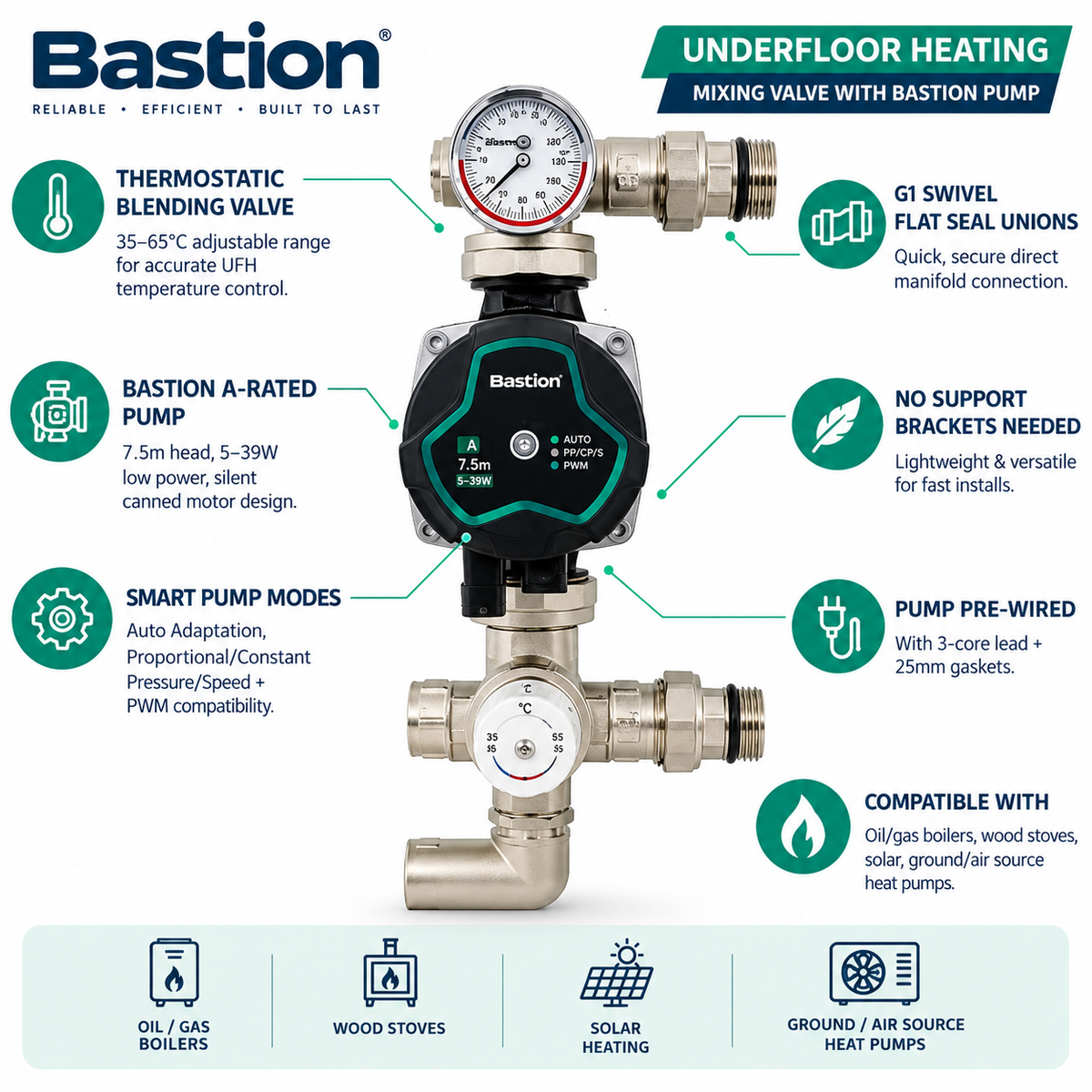

KEY FEATURES

• Adjustable Thermostatic Mixing Valve: Provides precise underfloor heating flow temperature control between 35°C and 65°C.

• Bracket-Free Installation: The compact, lightweight assembly allows flexible positioning without the need for separate support brackets.

• Compatibility with Multiple Heat Sources: Suitable for systems powered by gas or oil boilers, wood-burning stoves, solar heating, and ground-source or air-source heat pumps.

• Direct Manifold Connections: G1 male swivel unions with flat seals provide a secure connection and simplify installation.

• Energy-Efficient Bastion Circulation Pump: A-rated pump with a 7.5m maximum head, power consumption of 5–39W, and a quiet canned-motor design.

• Installation-Ready Pump: Supplied with a pre-wired three-core electrical lead and 25mm gaskets.

• Multiple Operating Modes: Includes auto adaptation, proportional pressure, constant pressure, and constant-speed settings, with PWM compatibility.
